🔧 Neo Geo AES Cartridge Slot Diagnostic PCB

🔧 Neo Geo AES Cartridge Slot Diagnostic PCB

68000 Bus Continuity Test Board – All AES Models

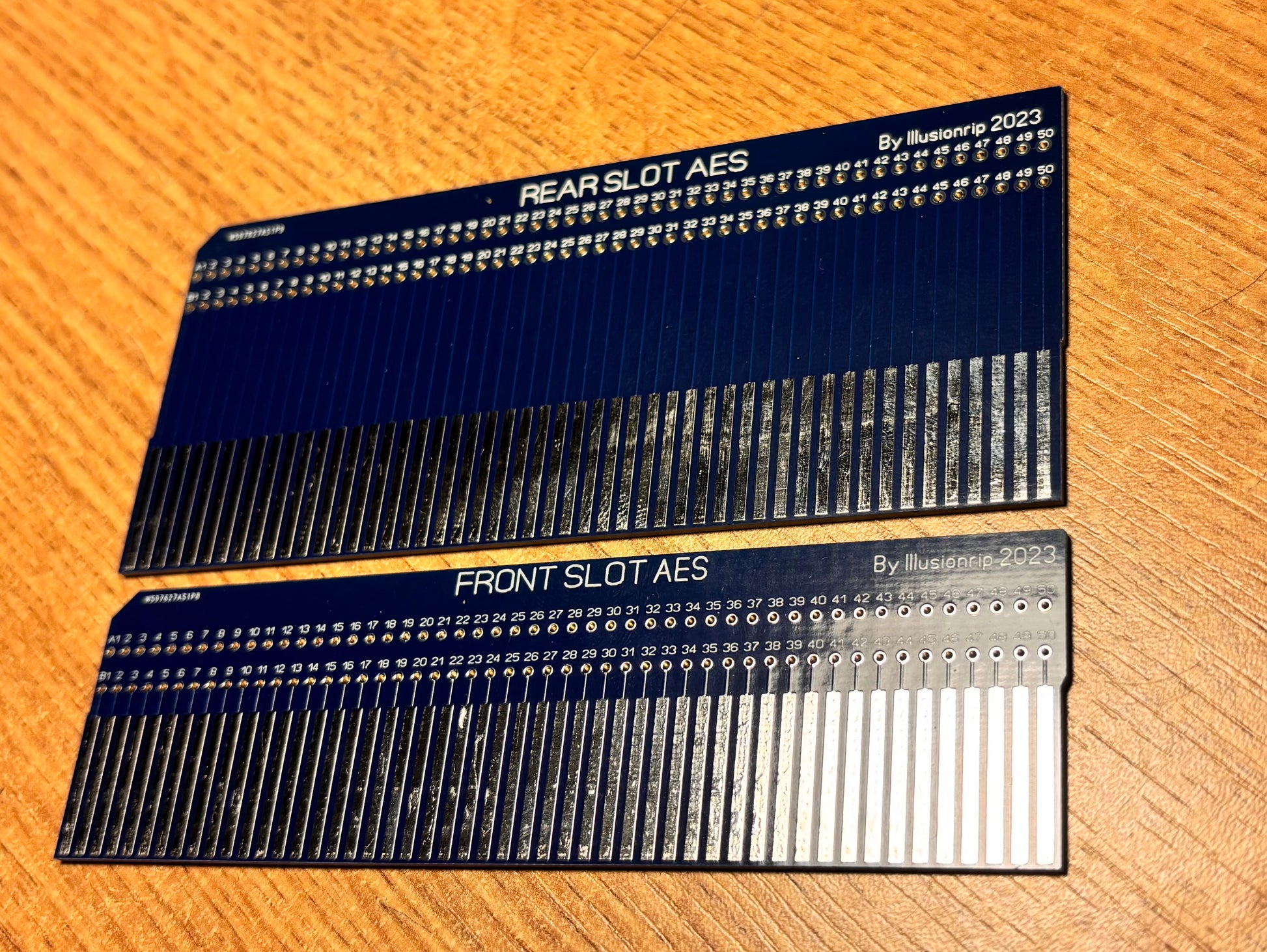

This diagnostic PCB is designed to be inserted directly into the Neo Geo AES cartridge slot, exactly like a standard AES game cartridge.

It is compatible with all Neo Geo AES models and was specifically developed for console repair and fault diagnosis, with a strong focus on continuity testing of the Motorola 68000 bus.

This tool is especially useful when troubleshooting the well-known “Click of Death” issue.

🧠 Purpose & Use Case

When a Neo Geo AES repeatedly clicks on power-up without booting, the problem is often related to:

• broken or cracked PCB traces

• poor continuity between the cartridge slot and the 68000 CPU bus

• internal PCB damage caused by age or mechanical stress

This diagnostic board provides direct, labeled access to cartridge slot signals, allowing fast and reliable continuity testing between:

• cartridge slot pins

• motherboard traces

• 68000 address and data lines

⚡ Key Features

• ✔ Inserts directly into the AES cartridge slot

• ✔ Compatible with ALL Neo Geo AES revisions

• ✔ Designed for 68000 bus continuity testing

• ✔ Ideal for diagnosing Click of Death failures

• ✔ Clearly labeled test points for probing

• ✔ No power required – passive diagnostic tool

• ✔ Non-invasive, no modification to the console

🛠️ How It’s Used

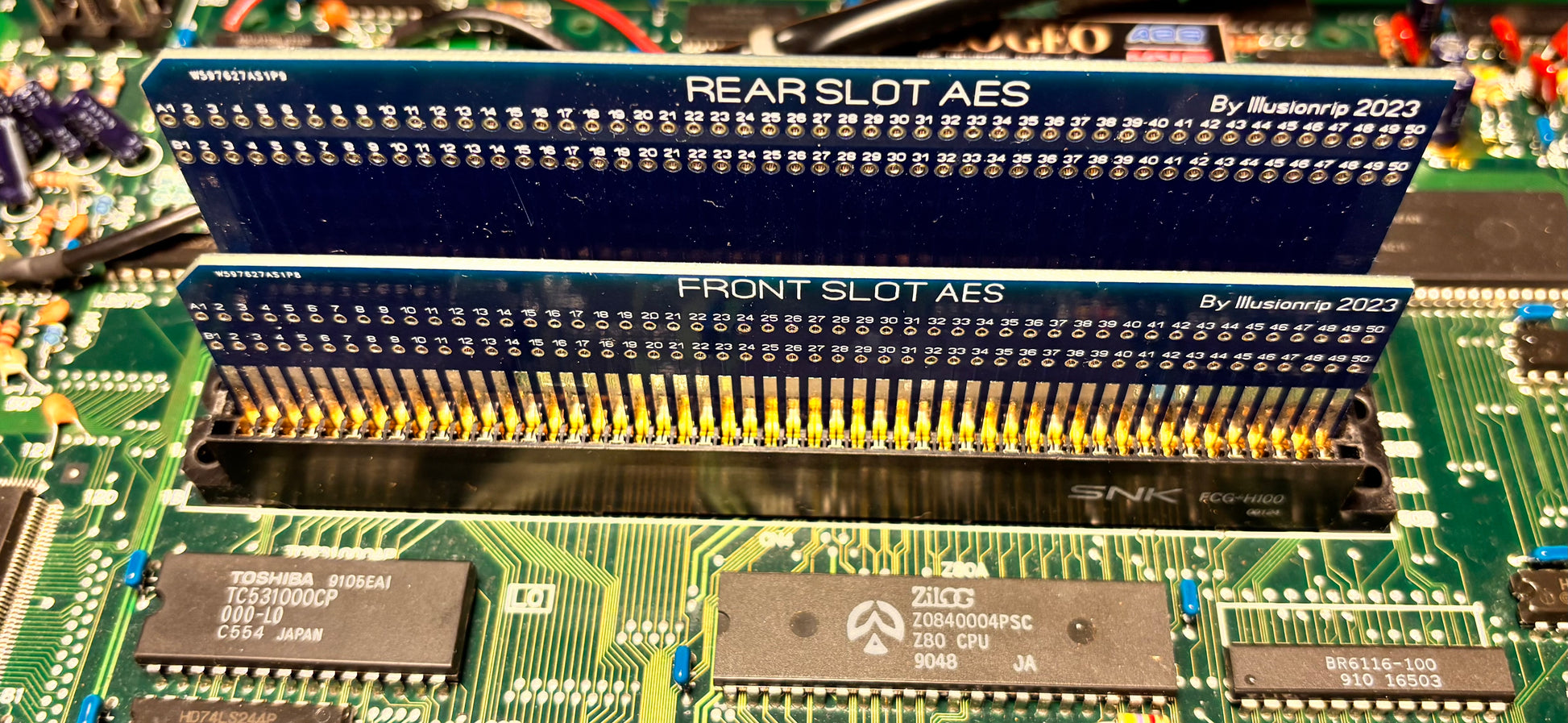

1. Insert the diagnostic PCB into the AES cartridge slot

2. Use a multimeter in continuity mode

3. Probe between the PCB test points and the corresponding motherboard / CPU pins

4. Identify broken traces or intermittent connections

This dramatically reduces troubleshooting time compared to probing directly inside the cartridge connector.

🎮 Perfect For

• Neo Geo AES console repair

• Diagnosing “Click of Death” issues

• Professional repair shops

• Advanced modders & technicians

• Collectors maintaining original hardware

📦 Product Details

• Product type: Diagnostic / Repair PCB

• Interface: Neo Geo AES cartridge slot

• Function: 68000 bus continuity testing

• Compatibility: All Neo Geo AES models

• Condition: New

• Designed by: IllusionRip

• Year: 2023

⚠️ Important Notes

❗ This product is NOT a game cartridge

❗ No software or ROM is included

❗ Intended strictly for diagnostic and repair use

Professional electronics knowledge is recommended.

An essential diagnostic tool for keeping Neo Geo AES hardware alive.
